Characteristics
- Protection against electromagnetic interference, dirt and moisture
- Our gaskets are suitable for the following connector standards / series: MIL-DTL-5015 / SAE-AS50151, MIL-DTL-26500, MIL-DTL-26482 I & II, MIL-DTL-38999 I, II & III, MIL-DTL-83723 II & III, VG95234, VG95342, VG95328, VG96912, VG96513, VG95319-1006,-1007, -1008, -1016, EN4165, EN3645, JN1003, JN1034, GCA, GCA-B, GCB-B, GCB-M, SJT, SIM2, PT, TV, CTV, TV SIM, LJT
- Our gasket are suitable for the following shell styles: Receptacle with square flange, front or rear mounting; Receptacle for single-hole mounting (jam nut); Protection caps; Rectangular connectors; Trapezoidal D-SUB connectors
- Special shapes on request
- EMI/RFI protection; Frequency range: 15KHz to 4GHz; Shielding characteristics: Version A: ≥ 80 dB; Version B: ≥ 70 dB
- Operating temperature range: -55°C to +160°C
Technical Information
Documents
Videos
3D models
Applications / Market segments
The gaskets have a wide range of applications, as they are used wherever a connection needs to be protected from frequencies, dirt, moisture and liquids.
Defense
Industry
Navy and marine environment
Aviation and Space
Urban Air Mobility
Unmanned Systems
Material / Finishes
Version A
Fluorosilicone filled with Ag/Al particles
Hardness (65 ± 10) Shore A according to DIN EN ISO 868
Color: light green
Shieldingeffect: ≥ 80dB

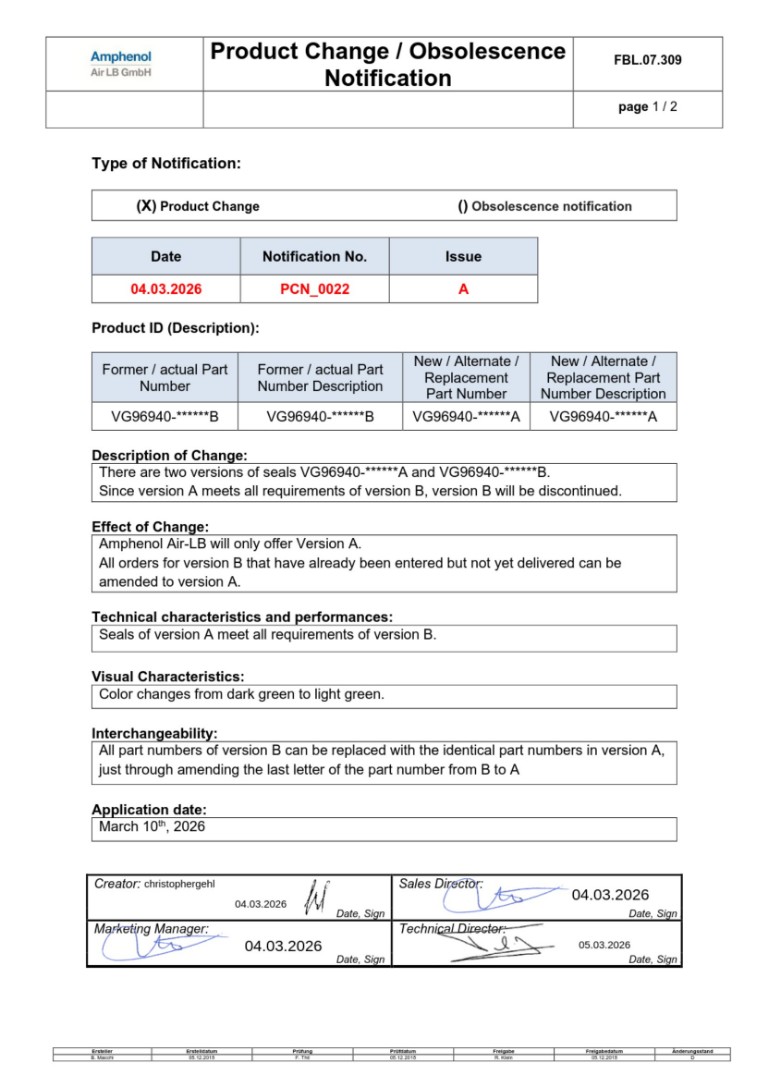

Version B
Fluorosilicone filled with Ni/C particles
Hardness (75 ± 7) Shore A according to DIN EN ISO 868
Color: dark green
Shieldingeffect: ≥ 70dB
Styles
Style A, B, C, CA, CB
VG96940-06A / AALB-FSPL-06A
VG96940-06B / AALB-FSPL-06B
VG96940-06C / AALB-FSPL-06C
VG96940-06CA / AALB-FSPL-06CA
VG96940-06CB / AALB-FSPL-06CB
For square flange receptacles
Style D
VG96940-06D / AALB-FSPL-06D
Gasket for VG96513 / EN4165 rectangular connector
Style E
VG96940-06E / AALB-FSPL-06E
Gaskets for caps
Style F
VG96940-06F / AALB-FSPL-06F
Jam nut receptacle gasket
This gasket replaces the standard gasket supplied with the connector.
Style G
VG96940-06G / AALB-FSPL-06G
Gasket for jam nut receptacles
This gasket is additionally inserted during assembly
Style D-SUB
D-SUB-*-Y3
Gasket for trapezoidal connectors (D-SUB)
Technical characteristics
Shielding effect
Version A: ≥ 80 dB
Version B: ≥ 70 dB
Operating temperature range
-55°C to +160°C
Frequency range
15KHz to 4GHz
Water resistance
According to VG95319-2, test 5.9.2
1bar/16h style A, B
0.2bar/48h style C, CA, CB, E, F, G
Norm / Standard
VG96940-6
Amphenol Air-LB is VG96940-6 approved and VG95212 (LZB) listed.
AALB-FSPL and D-SUB-*-Y3-
The AALB-FSPL series from Amphenol-Air LB has the same technical design as VG96940-6 and is it´s commercial equivalent. However, in addition to the versions described in the standard, AALB-FSPL offers additional options, such as material thicknesses. Other materials and special shapes are available upon request.
Under the manufacturer's part marking D-SUB-*-Y3-we offer electrically conductive seals for trapezoidal D-SUB connectors suitable for series EPC / ASNE0237 / ABS1145 / MIL-DTL-24308 EC807-3 / DIN 41652
