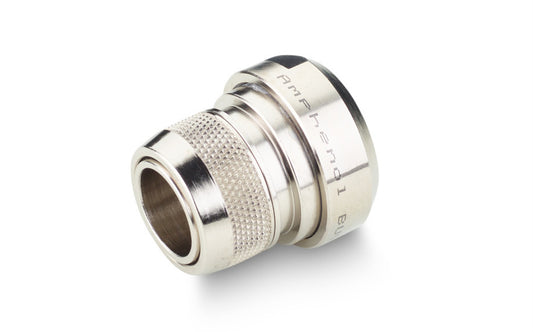

VG95319-1011
68011

Backshell
EMC protection
Dirt and moisture protection

Backshells form the pressure-tight seal of a connector and offer protection against electromagnetic interference, moisture, and dirt. When the shield is secured with a band, they also provide a strain relief.

The VG95319-1011 / BVG backshells are suitable for the following connectors: VG95319-1006, -1007, -1008, -1016 / MIL-DTL-38999 Series III / Amphenol TV/CTV

Amphenol Air LB product from our own production
Amphenol Air LB product with VG approval

Characteristics

The backshells are available in different versions: band connection / clamping cone (SQ) / for heat shrink boots / straight or angled
Wide selection of cable outputs
Different materials and platings
Water pressure tight 1 bar/48h between the connector and the backshell
Temperature range for aluminum alloy cadmium, zinc-nickel, Zinc-tin and/or black anodized and marine bronze versions: from -55°C to +175°C
Temperature range for nickel-plated aluminum alloy and stainless steel versions: from -55°C to +260°C
EMI/RFI protection

Technical Information

Documents

3D models

Applications

The backshells have a wide range of applications, as they are used wherever a connection needs to be protected from frequencies, dirt, moisture, liquids and mechanical stress.

Defense

Navy and marine environment

Industry

Electric Air Mobility

Unmanned Systems

Material / Versions

At the Saarlouis site, these backshells are manufactured in the following versions:

68011:

N: Aluminum alloy with nickel-plated surface coating
ZN: aluminum alloy with zinc-nickel surface coating, black
W: Aluminum alloy with cadmium plating

VG95319-1011:

B: Marine Bronze
J: Aluminum alloy with zinc-tin surface coating and/or black anodized
S: Stainless steel, passivated

Zinc-tin and/or black anodized

VG95319-1011: J

RoHS compliant: Yes
Salt spray test duration: 5d
Electrically conductive: Yes (5mΩ)
Temperature range:
-55°C to + 175°C

Marine Bronze

VG95319-1011: B

RoHS compliant: Yes
Salt spray test duration: 5d
Electrically conductive: Yes (5mΩ)
Temperature range:
-55°C to + 175°C

Nickel

68011: N

RoHS compliant: Yes
Salt spray test duration: 48h
Electrically conductive: Yes (2.5mΩ)
Temperature range:
-55°C to + 200°C

Zinc-Nickel

68011: ZN

RoHS compliant: Yes
Salt spray test duration: 500h
Electrically conductive: Yes (5mΩ)
Temperature range:
-55°C to + 175°C

Cadmium

68011: W

RoHS compliant: No
Salt spray test duration: 5d
Electrically conductive: Yes (5mΩ)
Temperature range:
-55°C to + 175°C

Stainless steel

VG95319-1011: S

RoHS compliant: Yes
Salt spray test duration: 5d
Electrically conductive: Yes (10mΩ)
Temperature range:
-55°C to + 260°C

Shell Styles

Style A & G

Band adapter

Style A
Knurled backshell nut

Style G
backshell nut with wrench attachment

Straight backshell for band termination
and for use with a heat shrink boot

Style B & H

90° Band adapter

Style B
Backshell-nut with knurl

Form H
Backshell-nut with wrench attachment

for band termination
and for use with a heat shrink boot

Style C

Clamping cone

Style C
Straight backshell for braid mounting,
for use with a heat shrink boot
Backshell-nut with wrench attachment

Style D

Band adapter

Style A
Backshell nut with wrench attachment

Straight backshell, shortened design
for band termination and for use with a heat shrink boot

Style E

heat shrink boot adapter

Style E
Straight backshell for use with a heat shrink boot
Backshell-nut with wrench attachment

Style F

Clamping cone

Style F
Straight backshell for braid mounting,
shortened version
for use with a heat shrink boot
Backshell-nut with wrench attachment
