Characteristics
- Audio connectors
- 10-pin
- Hard gold-plated spring contacts: excellent contact resistance and efficient self-cleaning
- Extreme durability: 5000 mating cycles
- Scoop-proof: Protects the pin contacts from contact and damage (e.g. when blind mating)
- Contact selection: solder contacts or contacts for PCB termination
- Operating temperature range -57 °C to +85 °C
Technical Information
Documents
Videos
3D models
Applications / Market segments
Audio transmission in harsh environments:
(Bundeswehr) defense equipment, communications, intelligence
Radios, audio devices
Defense
Material / Versions
Contacts: gold-plated copper alloy
Shell:
Amphenol-Air LB manufactures the following GCA-B versions at its Saarlouis site:
- Stainless steel, passivated
Stainless steel, passivated
- RoHS compliant: Yes
- Salt spray test duration: 5d
- Electrically conductive: Yes

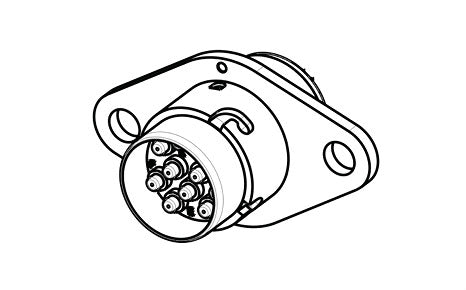

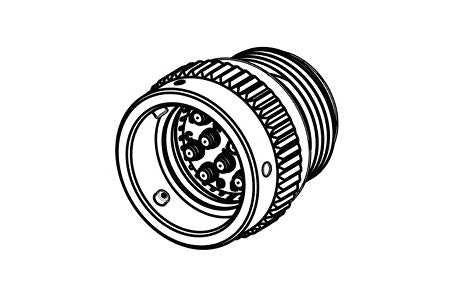

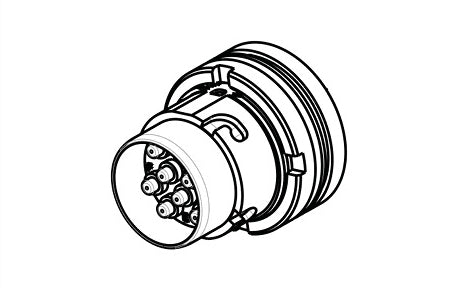

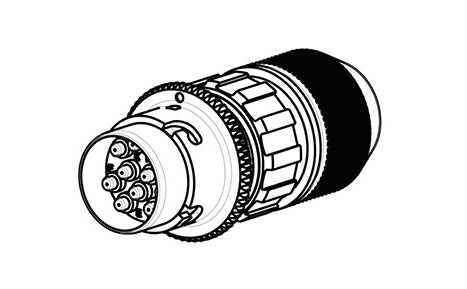

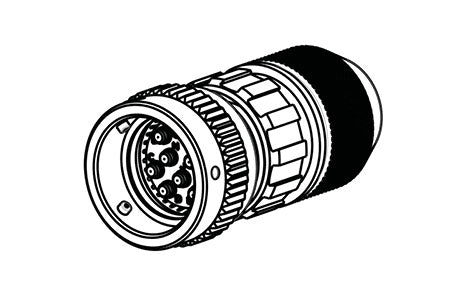

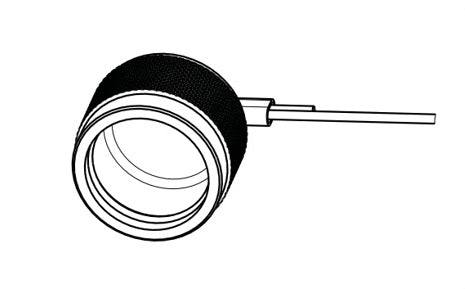

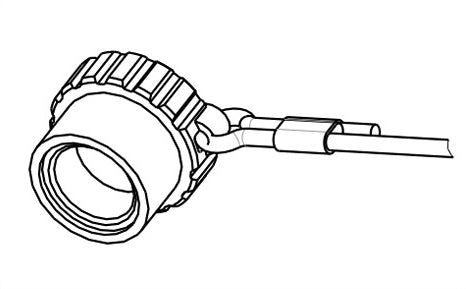

Shell Styles / Scope of delivery
Shells
Number of shell sizes: 1
Shell size designation: 10
Scope of delivery
Contacts are included: Yes
Backshell is included: Yes
Polarization
In applications with multiple connectors with the same
insert arrangement, these can be protected against mis-mating by polarization
Number of polarization options: 5
Designation of polarizations:
1 / 2 / 3 / 4 / 5
Type of polarization:
color marking
Electrical data / contacts
max. current per contact
0.5A
EMC/RFI Protection
Electrically conductive shell surfaces and backshells for connecting a shielding braid enable a shielding effect between the plug, socket, backshell and shielding braid of the cable against electromagnetic interference.
Contact selection
Solder contacts for max. AWG 20 or 0.5mm²
or PCB contacts available
(spring contacts on the receptacle, rigid contacts on the plug side)
Insert arrangements
Number of contacts: 10
Number of pinsert arrangements: 1
Mechanical characteristics
Operating temperature range
-57°C to +85°C
Tightness
0.4bar/48h in coupled and unmated condition
Mating cycles
Min. 5000
Locking mechanism
Reverse-bayonet
- Time-saving: Quick locking thanks to 1/4 turn
- Security: Visual, acoustic and haptic indicators confirm full locking
- Vibration-proof: Protects against unwanted unlocking due to vibration
- Self-cleaning: Light dirt is rubbed out when locking and unlocking
Material
Contacts: gold-plated copper alloy
Shell: Stainless steel, passivated
Shock
half sine,
150 m/s2, 11 ms
Vibration
Random
5Hz to 500Hz
Norm / Standard
VG95934 Approval in progress
Technical Information
Applications / Market segments
Audio transmission in harsh environments:
(Bundeswehr) defense equipment, communications, intelligence
Radios, audio devices
Defense
Material / Versions
Contacts: gold-plated copper alloy
Shell:
Amphenol-Air LB manufactures the following GCA-B versions at its Saarlouis site:
- Stainless steel, passivated
Stainless steel, passivated
- RoHS compliant: Yes
- Salt spray test duration: 5d
- Electrically conductive: Yes
Shell Styles / Scope of delivery
Shells
Number of shell sizes: 1
Shell size designation: 10
Scope of delivery
Contacts are included: Yes
Backshell is included: Yes
Polarization
In applications with multiple connectors with the same
insert arrangement, these can be protected against mis-mating by polarization
Number of polarization options: 5
Designation of polarizations:
1 / 2 / 3 / 4 / 5
Type of polarization:
color marking
Electrical data / contacts
max. current per contact
0.5A
EMC/RFI Protection
Electrically conductive shell surfaces and backshells for connecting a shielding braid enable a shielding effect between the plug, socket, backshell and shielding braid of the cable against electromagnetic interference.
Contact selection
Solder contacts for max. AWG 20 or 0.5mm²
or PCB contacts available
(spring contacts on the receptacle, rigid contacts on the plug side)
Insert arrangements
Number of contacts: 10
Number of pinsert arrangements: 1
Mechanical characteristics
Operating temperature range
-57°C to +85°C
Tightness
0.4bar/48h in coupled and unmated condition
Mating cycles
Min. 5000
Locking mechanism
Reverse-bayonet
- Time-saving: Quick locking thanks to 1/4 turn
- Security: Visual, acoustic and haptic indicators confirm full locking
- Vibration-proof: Protects against unwanted unlocking due to vibration
- Self-cleaning: Light dirt is rubbed out when locking and unlocking
Material
Contacts: gold-plated copper alloy
Shell: Stainless steel, passivated
Shock
half sine,
150 m/s2, 11 ms
Vibration
Random
5Hz to 500Hz
Norm / Standard
VG95934 Approval in progress
