Characteristics
- Optical data connector
- GTB: 2, 4, 8 or 12 channels
- GMTB: 2 or 4 channels
- Multimode, singlemode or dualmode
- Expanded Beam technology
- Min. 3000 mating cycles
- Return loss: >31dB
- Protection class: IP67
- Operating temperature range -55°C to +85°C
Technical Information
Documents
Videos
3D models
Applications / Market segments
Data transmission in high vibration or harsh environments
Heavy commercial vehicles, construction machinery, mechanical engineering, robotics, mining, diagnostics/measurement technology
(German Armed Forces) defense equipment, military vehicles, marine applications, coastal applications, submarines
C5ISR - Command, Information, Communications, Computer Systems, Cyber, Intelligence, Surveillance and Reconnaissance
Defense
Navy and marine environment
Industry
Material / Versions
Amphenol-Air LB manufactures the following versions at its Saarlouis site:
Omit: Black anodized aluminum alloy / Cap: Nylon, optional metal (on request)
F6: Marine Bronze
F7: Stainless steel
Black anodized
Shell styles / Scope of delivery
Shells
Numbers of shell sizes: 2
Shell size designation: GTB/GMTB
Scope of delivery
Ferrules/Terminals included: Yes
Backshell is included: Yes
GTB07 / GMTB07
GTB00 / GMTB00
GTB06 / GMTB06
Technical characteristics
insert arrangements
Number of channels: 2-12
Number of insert
arrangements: 4
Mating cycles
min. 3000
Operating temperature range
-55°C to +85°C
Return loss (plugged)
>31dB at 1310nm/1550nm single mode
Insertion loss
<0.8dB at 850/1300nm multimode
<1.5dB at 1310nm/1550nm singlemode
Fiber type
Single mode
Multimode
Dual mode (mixed single and multimode)
Ferrules
Suitable for 126μm and 125μm
900μm single fiber or mini breakout cable
Special ferrules for 2mm single cable optional
Wavelength: 850-1300nm, 1310-1550nm
vibration
According to EIA/TIA-455-11: Sinusoidal test, Condition III (at 40 g), and random test, Condition IV (Category C), for a duration of 1.5 hours.
Shock
According to EIA/TIA-455-14, Test Condition A
Locking mechanism
Hermaphroditic thread
all shell styles can be cross mated
enables cable extensions for different distances
technology
Beam-expanding lenses
less susceptible to dirt and dust
easy to clean
thus less impairment of optical performance
Norm / Standard

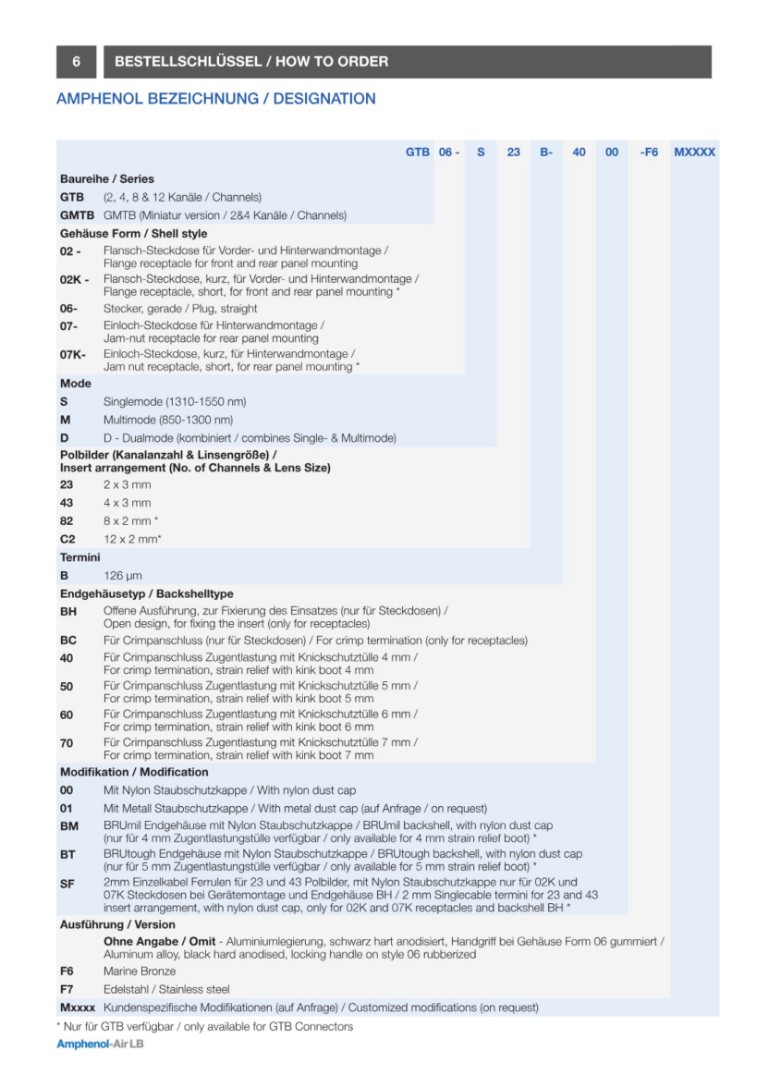

GTB / GMTB
The GTB series is compatible with MIL-PRF-83526 and VG95319-100, -101, -102, or VG96977, and is the commercial equivalent. However, in addition to the versions described in the standard, GTB connectors offer an additional selection of shell styles and materials, insert
arrangements up to 12 channels, and backshells for BRUmil or BRUtough cables.
VG96977 Approval in progress
Technical Information
Applications / Market segments
Data transmission in high vibration or harsh environments
Heavy commercial vehicles, construction machinery, mechanical engineering, robotics, mining, diagnostics/measurement technology
(German Armed Forces) defense equipment, military vehicles, marine applications, coastal applications, submarines
C5ISR - Command, Information, Communications, Computer Systems, Cyber, Intelligence, Surveillance and Reconnaissance
Defense
Navy and marine environment
Industry
Material / Versions
Amphenol-Air LB manufactures the following versions at its Saarlouis site:
Omit: Black anodized aluminum alloy / Cap: Nylon, optional metal (on request)
F6: Marine Bronze
F7: Stainless steel
Black anodized
Shell styles / Scope of delivery
Shells
Numbers of shell sizes: 2
Shell size designation: GTB/GMTB
Scope of delivery
Ferrules/Terminals included: Yes
Backshell is included: Yes
GTB07 / GMTB07
GTB00 / GMTB00
GTB06 / GMTB06
Technical characteristics
insert arrangements
Number of channels: 2-12
Number of insert
arrangements: 4
Mating cycles
min. 3000
Operating temperature range
-55°C to +85°C
Return loss (plugged)
>31dB at 1310nm/1550nm single mode
Insertion loss
<0.8dB at 850/1300nm multimode
<1.5dB at 1310nm/1550nm singlemode
Fiber type
Single mode
Multimode
Dual mode (mixed single and multimode)
Ferrules
Suitable for 126μm and 125μm
900μm single fiber or mini breakout cable
Special ferrules for 2mm single cable optional
Wavelength: 850-1300nm, 1310-1550nm
vibration
According to EIA/TIA-455-11: Sinusoidal test, Condition III (at 40 g), and random test, Condition IV (Category C), for a duration of 1.5 hours.
Shock
According to EIA/TIA-455-14, Test Condition A
Locking mechanism
Hermaphroditic thread
all shell styles can be cross mated
enables cable extensions for different distances
technology
Beam-expanding lenses
less susceptible to dirt and dust
easy to clean
thus less impairment of optical performance
Norm / Standard
GTB / GMTB
The GTB series is compatible with MIL-PRF-83526 and VG95319-100, -101, -102, or VG96977, and is the commercial equivalent. However, in addition to the versions described in the standard, GTB connectors offer an additional selection of shell styles and materials, insert
arrangements up to 12 channels, and backshells for BRUmil or BRUtough cables.
VG96977 Approval in progress
