Characteristics
- Signal connector (max. 13A per contact)
- Solder insert arrangements 16-2/xx up to max. 40A (replacement for Schaltbau insert arrangements)
- High contact density: up to 61 contacts per connector, ideal for applications in small spaces
- Five guiding grooves for effortless insertion
- Contact selection: AWG crimp contacts, contacts for PCB connection or wire wrap contacts
- Protection class: IPx8 (0.2 bar/ 48h)
- Operating temperature range: -55°C to +125°C
- EMI/RFI protection
Technical Information
Documents
Videos
3D models
Applications / Market segments
Signal transmission in high vibration or harsh environments e.g.
(German Armed Forces) defense equipment, military vehicles, marine applications, coastal applications, submarines, shipping,
C5ISR - Command, Information, Communications, Computer Systems, Intelligence, Cyber, Surveillance and Reconnaissance,
heavy commercial vehicles, construction machinery, mining, mechanical engineering, diagnostics/measurement technology, robotics
Defense
Navy and marine environment
Industry
Material / Versions
Contacts: Copper alloy, gold-plated
Insulator: Neopren
Shells:
Amphenol-Air LB manufactures the following versions at its Saarlouis site:
PT:
omit : Aluminum alloy, cadmium-plated
023: Aluminium alloy,nickel-plated
029J: Aluminium alloy, zinc–tin plated and/or black anodized
033K: Aluminum alloy, zinc-nickel plated (black colored)
F6: Marine Bronze
AA95328:
omit : Aluminum alloy, cadmium-plated
VG95328:
J: Aluminium alloy, zinc–tin plated and/or black anodized
B: Marine Bronze
zinc–tin and/or black anodized
PT: 029J / VG5328: J
- RoHS compliant: Yes
- Salt spray test duration: 5d
- Electrically conductive: Yes

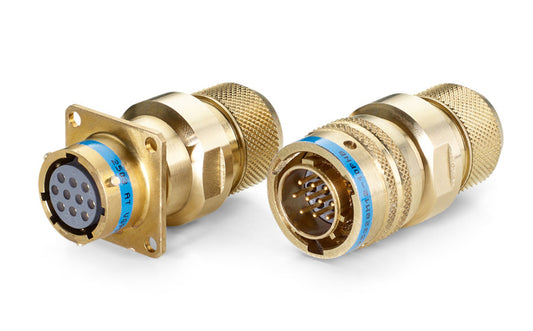

Marine Bronze
PT: F6 / VG5328: B
- RoHS compliant: Yes
- Salt spray test duration: 5d
- Electrically conductive: Yes

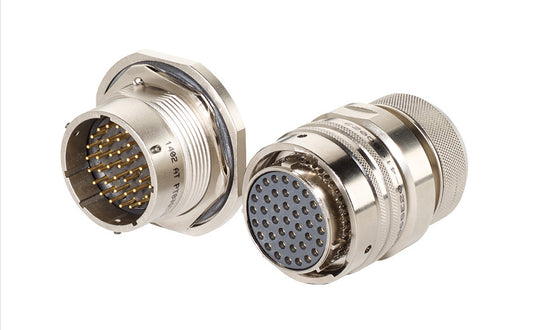

Nickel
PT: 023
- RoHS compliant: Yes
- Salt spray test duration: 48h
- Electrically conductive: Yes
Zinc-Nickel, black
PT: 033K
- RoHS compliant: Yes
- Salt spray test duration: 500h
- Electrically conductive: Yes
Cadmium
PT: Omit
AA95328: Omit
- RoHS compliant: No
- Salt spray test duration: 5d
- Electrically conductive: Yes
Shell styles / Scope of delivery / Accessories
Shells
Number of shells sizes: 9
Designation of shells sizes:
8 / 10 / 12 / 14 / 16 / 18 / 20 / 22 / 24
Encodings
In applications with multiple connectors with the same
insert arrangement, these can be protected against mis-mating by polarization
Number of polarization options: 5
Designation of polarizations:
PT:
omit or N (normal position) / W / X / Y / Z
VG95328:
N / W / X / Y / Z
Type of polarization: Isolator rotation
Scope of delivery
Contacts are included by default: Yes
Backshell is included: Yes
Accesories
The series offers the following accessories:
- Crimp contacts
- Coaxial contacts
- Blind plugs
- Dummy receptacles
- gaskets
- Potting caps
- Transport protection caps (plastic)
- Protective caps (metal)
- Tools
Electrical data / contacts
max. current per contact
23A
EMC/RFI Protection
Electrically conductive shell surfaces and backshells for connecting a shielding braid enable a shielding effect between the plug, socket, backshell and shielding braid of the cable against electromagnetic interference.
Contact selection
Crimp contact wire cross-section
AWG 20 - 16
Optionally solder contacts, wire wrap contacts or
PCB contacts available
Insert arrangements
Number of contacts: 2-61
Number of insert arrangements: 37
Mechanical characteristics
Locking mechanism
Three-pin bayonet:
- Time-saving: Quick locking thanks to 1/4 turn
- Safety: acoustic indicator confirms full locking
- Vibration-proof: Protects against unwanted unlocking due to vibration
Protection class
IPx8 (1 bar/16 h)
Operating temperature range
-55°C to +125°C
Mating cycles
min. 500
Shock
Half sine: 500m/s², 11ms
Vibration
200 m/s² at 10 to 2000 Hz
Norm / Standard
VG95328
Amphenol-Air LB is VG95328 approved in the tin zinc (J) and marine bronze (B) versions and listed in VG95212 (LZB), as well as steel in the hermetic designs.
According to the official announcement from BAAINBw, the approval certificates for cadmium-plated or Cr-VI-containing connectors will expire on June 30, 2026 for all manufacturers.
AA95328
To ensure long-term supply security for the cadmium-plated version beyond June 30, 2026, Amphenol-Air LB has introduced the manufacturer standard AA95328. This is structurally based on the VG95328 and is, with regard to Form, fit and function fully compatible.
The system of the order key enables a simple and direct cross referenz from VG95328 to AA95328
PT
The Amphenol-Air LB PT series has the same technical design as VG95328 and is its commercial equivalent. However, in addition to the designs described in the standard, PT offers a further selection of shell styles, contact configurations, and versions under the manufacturer's part designation.
The series is constantly being further developed to meet new requirements and is tailored to customer specifications.
