Characteristics
- Signal and power connectors (max. 23A)
- Data connector: The insert arrangement 12-35 is tested up to CAT6A (10 Gbit/s according to DIN EN 50173-1, up to 500MHz)
- Tested up to 2 x USB 3.0 / HDMI 1.4 / DVI-D / 2 x CAT6
- High contact density: up to 128 contacts per connector, ideal for applications in small spaces
- Scoop proof: Protects the pin contacts from damage (e.g. when blind mated)
- Lightweight aluminum shells or particularly robust marine bronze shells
- Interfacial seal: Protects against electrolytic corrosion on the contacts
- Five guiding grooves for effortless insertion
- Contact selection: AWG crimp contacts, contacts for PCB connection, or wire wrap contacts
- Protection class: IP68 (0.2 bar / 48h)
- Operating temperature range: -65°C to +175°C
- EMI/RFI protection
Technical Information
Documents
Videos
3D models
Applications / Market segments
Data and signal transmission in high vibration or harsh environments e.g.
(German Armed Forces) defense equipment, military vehicles, marine applications, coastal applications, submarines, shipping,
C5ISR - Command, Information, Communications, Computer Systems, Intelligence, Cyber, Surveillance and Reconnaissance,
Heavy commercial vehicles, construction machinery, mining, mechanical engineering, diagnostics/measurement technology, robotics
Defense
Navy and marine environment
Industry
Material / Version
Contacts: Copper alloy, hard gold plated
Insulator: Plastic / Fluorosilicone
Shells:
Amphenol-Air LB manufactures the following versions at its Saarlouis site:
SJT:
023: Aluminium alloy with nickel-plated surface coating
029J: Aluminium alloy, surface zinc–tin coated and/or black anodized
014: Aluminum alloy with cadmium-plated surface coating
F6: Marine Bronze
VG96912:
J: Aluminium alloy, surface zinc–tin coated and/or black anodized
B: Marine Bronze

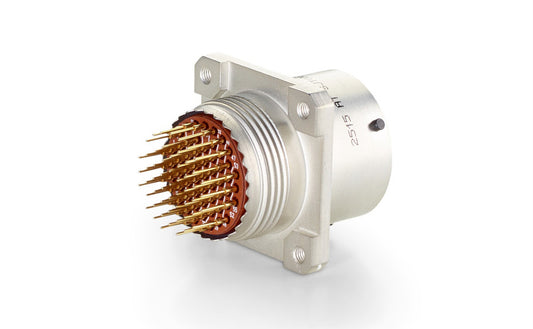

Zinc tin and/or black anodised
SJT: 029J / VG96912: J
- RoHS compliant: Yes
- Salt spray test duration: 5d
- Electrically conductive: Yes
Marine Bronze
SJT: F6 / VG96912: B
- RoHS compliant: Yes
- Salt spray test duration: 5d
- Electrically conductive: Yes
Nickel
SJT: 023
- RoHS compliant: Yes
- Salt spray test duration: 48h
- Electrically conductive: Yes
Cadmium
SJT: 014
- RoHS compliant: No
- Salt spray test duration: 5d
- Electrically conductive: Yes
Shell style / Scope of delivery / Accessories
Shell sizes
Number of shell sizes: 9
Designation of shell sizes:
8 / 10 / 12 / 14 / 16 / 18 / 20 / 22 / 24
Polarization
In applications with multiple connectors with the same insert arrangement, these
can be protected against mis-mating by polarization
Number of polarizationoptions: 5
Designation of polarizations:
N / A / B / C / D
Type of polarization: Shell
Scope of delivery
Contacts are included by default: Yes
Backshell is included: No
SJT06RT, SJTG06RT / VG96912 D, E
SJT06RT / VG96912E
Straight plug

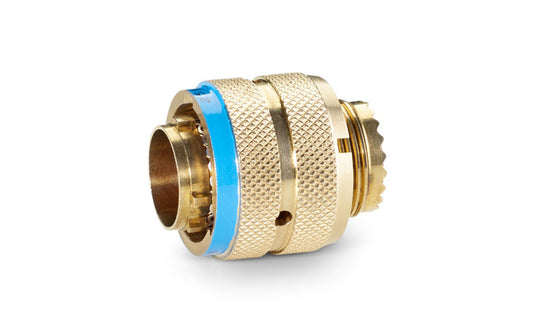

SJTG06RT / VG96912D
Straight plug, 360° RF sealed
SJT 00 RT, AB, GS, WW / VG96912 A, AB
for front and rear wall mounting

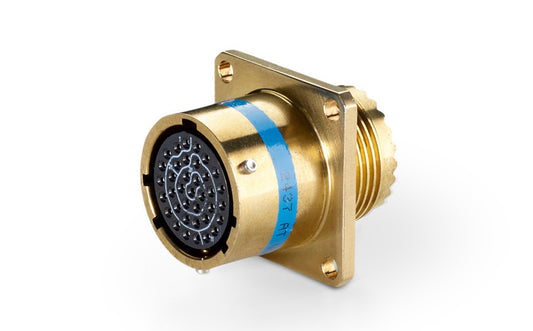

SJT00RT / VG96912A
Crimp contacts

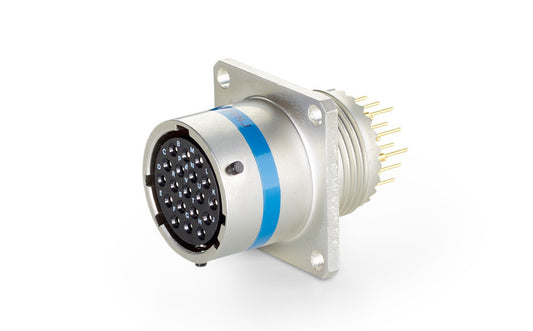

SJT00AB / VG96912AB
PCB contacts, assembled
SJT00GS
PCB contacts, enclosed loose
SJT00WW
wire wrap contacts

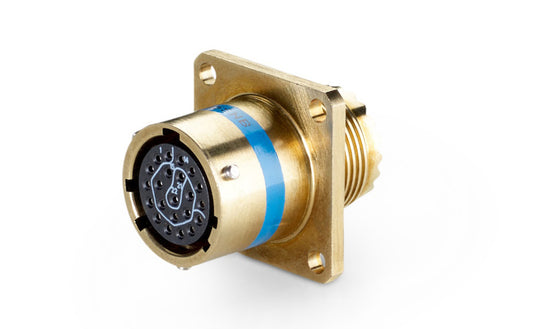

SJTP00 / VG96912AA
for rear wall mounting

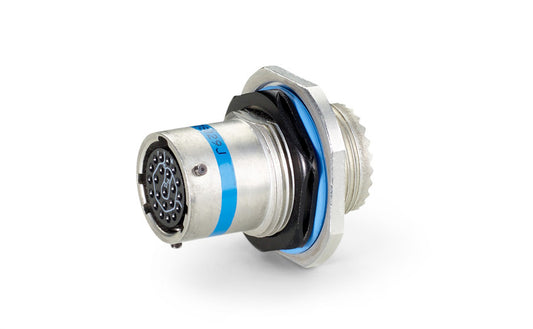

SJT 07 RT, BA, GS, WW / VG96912 B, BA
for rear wall mounting
SJT07RT / VG96912B
Crimp contacts

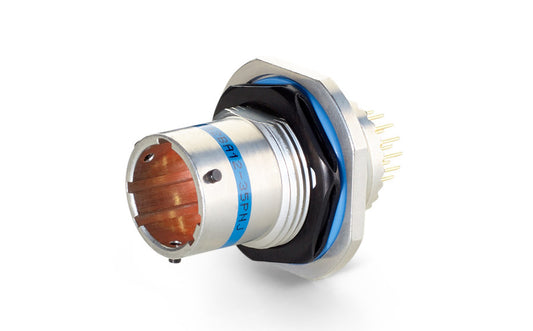

SJT07BA / VG96912BA
PCB contacts, assembled
SJT07GS
PCB contacts, enclosed loose
SJT07WW
wire wrap contacts
SJT 01 RT / VG96912X
In-Line receptacle
SJTIY / VG96912C
Receptacle with solder flange, hermetically sealed, solder contacts
Accesories
The series offers the following accessories:
- Crimp contacts
- Fiber optic termini
- Coaxial contacts
- Dummy plug
- Dummy receptacles
- Gaskets
- Transport protection caps (plastic)
- Protective caps (metal)
- Tools
Electrical data / contacts
max. current per contact
23A
EMC/RFI Protection
Electrically conductive shell surfaces and backshells for connecting a shielding braid enable a shielding effect between the plug, socket, backshell and shielding braid of the cable against electromagnetic interference.
Contact selection
SJT & VG96912:
Crimp contacts,
Crimp contact wire cross-section: AWG 28 - 12
PCB contacts
Solder contacts (only for hermetically sealed receptacles)
SJT:
Coaxial contacts
Fiber optic contacts
wire wrap contacts
insert arrangements
Number of contacts: 2-128
Number of insert arrangements:
SJT: 32 / VG96912: 31
Mechanical characteristics
Operating temperature range
-65°C to +175°C
Protection class
IPx8 (0.2 bar / 48h)
Mating cycles
min. 500
Locking mechanism
Three-pin bayonet:
- Time-saving: Quick locking thanks to 1/4 turn
- Safety: acoustic indicator confirms full locking
- Vibration-proof: Protects against unwanted unlocking due to vibration
Shock
Half sine: 500m/s², 11ms
Vibration
200m/s² from 10 to 2000Hz
Random 5-500Hz
Norm / Standard
VG96912
Amphenol-Air LB is VG96912 approved and VG95212 (LZB) listed.
The series SJT from Amphenol-Air LB has the same technical design as VG96912 and is its commercial equivalent. However, in addition to the versions described in the standard, SJT offers an additional selection of designs, insert
arrangements, and versions under the manufacturer's part number.
The series is constantly being developed to meet new requirements and tailored to customer specifications.
VG96912/SJT | Catalog V042023
DE
Download:
VG96912/SJT | Catalog V042023
EN
Download:
SJT Data Connectors | Catalog
DE
Download:
SJT Dataconnector | Catalog
EN
Download:
Marine Bronze | Brochure V171120
DE / EN
Download:
J Plating | Brochure V03/2024
DE / EN
Download:
VG96912 / SJT AB, BA | Newsletter V08/25
EN / DE
Download:
VG96912/SJT | Ordering guide V082025
DE / EN
Download:
Technical Information
Applications / Market segments
Data and signal transmission in high vibration or harsh environments e.g.
(German Armed Forces) defense equipment, military vehicles, marine applications, coastal applications, submarines, shipping,
C5ISR - Command, Information, Communications, Computer Systems, Intelligence, Cyber, Surveillance and Reconnaissance,
Heavy commercial vehicles, construction machinery, mining, mechanical engineering, diagnostics/measurement technology, robotics
Defense
Navy and marine environment
Industry
Material / Version
Contacts: Copper alloy, hard gold plated
Insulator: Plastic / Fluorosilicone
Shells:
Amphenol-Air LB manufactures the following versions at its Saarlouis site:
SJT:
023: Aluminium alloy with nickel-plated surface coating
029J: Aluminium alloy, surface zinc–tin coated and/or black anodized
014: Aluminum alloy with cadmium-plated surface coating
F6: Marine Bronze
VG96912:
J: Aluminium alloy, surface zinc–tin coated and/or black anodized
B: Marine Bronze
Zinc tin and/or black anodised
SJT: 029J / VG96912: J
- RoHS compliant: Yes
- Salt spray test duration: 5d
- Electrically conductive: Yes
Marine Bronze
SJT: F6 / VG96912: B
- RoHS compliant: Yes
- Salt spray test duration: 5d
- Electrically conductive: Yes
Nickel
SJT: 023
- RoHS compliant: Yes
- Salt spray test duration: 48h
- Electrically conductive: Yes
Cadmium
SJT: 014
- RoHS compliant: No
- Salt spray test duration: 5d
- Electrically conductive: Yes
Shell style / Scope of delivery / Accessories
Shell sizes
Number of shell sizes: 9
Designation of shell sizes:
8 / 10 / 12 / 14 / 16 / 18 / 20 / 22 / 24
Polarization
In applications with multiple connectors with the same insert arrangement, these
can be protected against mis-mating by polarization
Number of polarizationoptions: 5
Designation of polarizations:
N / A / B / C / D
Type of polarization: Shell
Scope of delivery
Contacts are included by default: Yes
Backshell is included: No
SJT06RT, SJTG06RT / VG96912 D, E
SJT06RT / VG96912E
Straight plug
SJTG06RT / VG96912D
Straight plug, 360° RF sealed
SJT 00 RT, AB, GS, WW / VG96912 A, AB
for front and rear wall mounting
SJT00RT / VG96912A
Crimp contacts
SJT00AB / VG96912AB
PCB contacts, assembled
SJT00GS
PCB contacts, enclosed loose
SJT00WW
wire wrap contacts
SJTP00 / VG96912AA
for rear wall mounting
SJT 07 RT, BA, GS, WW / VG96912 B, BA
for rear wall mounting
SJT07RT / VG96912B
Crimp contacts
SJT07BA / VG96912BA
PCB contacts, assembled
SJT07GS
PCB contacts, enclosed loose
SJT07WW
wire wrap contacts
SJT 01 RT / VG96912X
In-Line receptacle
SJTIY / VG96912C
Receptacle with solder flange, hermetically sealed, solder contacts
Accesories
The series offers the following accessories:
- Crimp contacts
- Fiber optic termini
- Coaxial contacts
- Dummy plug
- Dummy receptacles
- Gaskets
- Transport protection caps (plastic)
- Protective caps (metal)
- Tools
Electrical data / contacts
max. current per contact
23A
EMC/RFI Protection
Electrically conductive shell surfaces and backshells for connecting a shielding braid enable a shielding effect between the plug, socket, backshell and shielding braid of the cable against electromagnetic interference.
Contact selection
SJT & VG96912:
Crimp contacts,
Crimp contact wire cross-section: AWG 28 - 12
PCB contacts
Solder contacts (only for hermetically sealed receptacles)
SJT:
Coaxial contacts
Fiber optic contacts
wire wrap contacts
insert arrangements
Number of contacts: 2-128
Number of insert arrangements:
SJT: 32 / VG96912: 31
Mechanical characteristics
Operating temperature range
-65°C to +175°C
Protection class
IPx8 (0.2 bar / 48h)
Mating cycles
min. 500
Locking mechanism
Three-pin bayonet:
- Time-saving: Quick locking thanks to 1/4 turn
- Safety: acoustic indicator confirms full locking
- Vibration-proof: Protects against unwanted unlocking due to vibration
Shock
Half sine: 500m/s², 11ms
Vibration
200m/s² from 10 to 2000Hz
Random 5-500Hz
Norm / Standard
VG96912
Amphenol-Air LB is VG96912 approved and VG95212 (LZB) listed.
The series SJT from Amphenol-Air LB has the same technical design as VG96912 and is its commercial equivalent. However, in addition to the versions described in the standard, SJT offers an additional selection of designs, insert
arrangements, and versions under the manufacturer's part number.
The series is constantly being developed to meet new requirements and tailored to customer specifications.
