Characteristics
- Circular connector suitable for EN4165 modules, for example power, signal, data, RJ45, Coax, Quadrax, ARINC801, Lumiere, MPO, MTP, USB

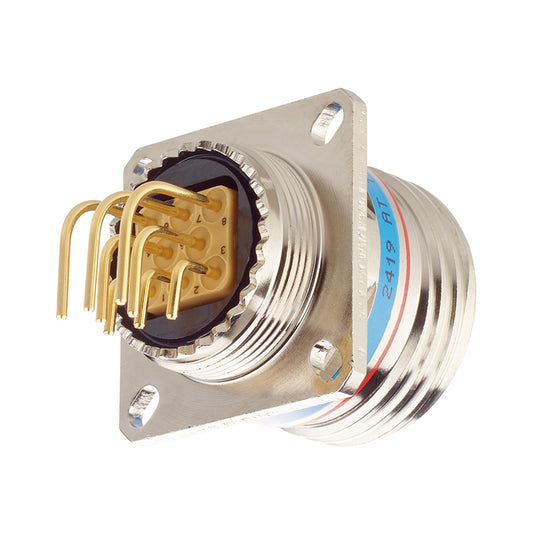

- Contacts for PCB termination, straight or 90° angled
- Five guiding grooves for effortless insertion
- EMI/RFI protection
- Protection class: IP67
- Operating temperature range: -55°C to +175°C
Technical Information
Documents
Videos
3D models
Applications / Market segments
Power systems, data, signal and video transmission in high vibration or harsh environments
(German Armed Forces) defense equipment, military vehicles, missiles and artillery, C5ISR - command, information, communications, computer systems, cyber, intelligence, surveillance and reconnaissance, naval applications, coastal applications, submarines, shipping
Heavy commercial vehicles, construction machinery, mechanical engineering, robotics, mining, welding technology, diagnostics/measurement technology, battery management systems, power distribution systems, engines, generators, urban transport systems in the airspace "EVTOL"
Defense
Aviation and Space
Navy and marine environment
Urban Air Mobility
Industry
Material / Version
Insulator: Thermoplastic, silicone elastomer
Contacts: Copper alloy, gold-plated on nickel, min. 1.27 ⴗm
Shells:
At the Saarlouis site, these connectors are manufactured in the following versions:
TV SIM:
J: Aluminum alloy with zinc-tin surface coating and/or black anodized
F: Aluminum alloy with nickel-plated surface coating
W: Aluminum alloy with cadmium-plated surface coating
ZN: aluminum alloy with zinc-nickel surface coating (black colored)
B: Marine Bronze
K: Stainless steel, passivated
S: Stainless steel, nickel-plated
CTV SIM:
F: Composite with nickel-plated surface coating
W: Composite with cadmium-plated surface coating
VG95319-1016:
J: Aluminum alloy with zinc-tin surface coating and/or black anodized
B: Marine Bronze

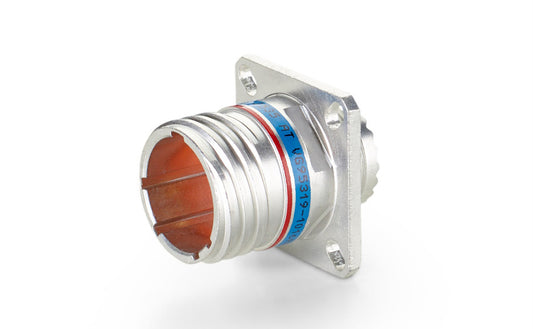

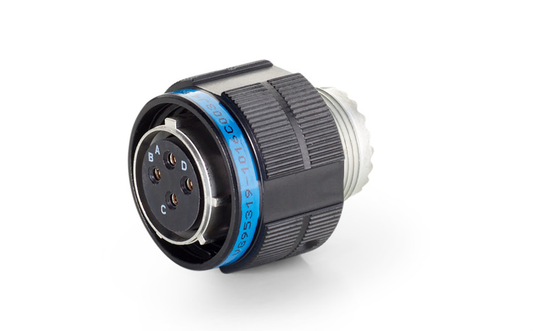

Zinc Tin and/or black anodized
TV-SIM: J / VG95319-1016: J
- RoHS compliant: Yes
- Salt spray test duration: 5d
- Electrically conductive: Yes (2.5mΩ)
Marine Bronze
(Example image)
TV-SIM: B / VG95319-1016: B
- RoHS compliant: Yes
- Salt spray test duration: 5d
- Electrically conductive: Yes (5mΩ)
Nickel
TV SIM (Aluminum Alloy): F
CTV-SIM (Composite): F
- RoHS compliant: Yes
- Salt spray test duration: 48h
- Electrically conductive: Yes (1mΩ)

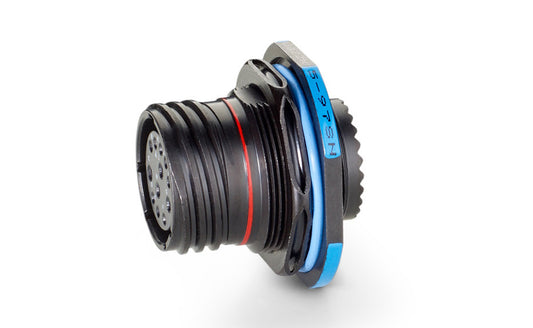

Zinc-Nickel
(Example image)
TV SIM: ZN
- RoHS compliant: Yes
- Salt spray test duration: 500h
- Electrically conductive: Yes (2.5mΩ)
Cadmium
(Example image)
TV SIM (Aluminum Alloy): W
CTV-SIM (Composite): W
- RoHS compliant: No
- Salt spray test duration: 500h
- Electrically conductive: Yes (2.5mΩ)

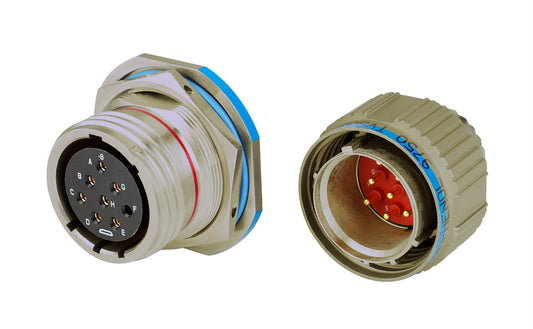

Stainless steel
(Example image)
TV SIM: Passivated: K / Nickel-plated: S
- RoHS compliant: Yes
- Salt spray test duration: 500h
- Electrically conductive: Yes (K: 10mΩ / S: 1mΩ)
Shell styles / Scope of delivery / Accessories
Shells
Number of shell sizes: 1
Shell size designation:
TV SIM / CTV SIM: 17
VG95319-1016 K,L,M: 001
Polarization
In applications with multiple connectors with the same insert arrangement, these can be protected against mis-mating by polarization
Number of polarizations: 6
Designation of polarizations:
N (Normal) / A / B / C / D / E
Type of polarization: Shell
Accesories
The series offers the following accessories:
- Crimp contacts
- Module
- Dummy plugs
- Dummy modules
- Backshell
- Dummy receptacle
- Gaskets
- Protective caps (metal)
- Tools
Scope of delivery
Modules must be ordered separately, either with or without contacts
Backshell is included: No
TV 00 / CTV 00 / VG95319-1016 K
Flange receptacle for rear wall mounting
TV 06 / CTV 06 / VG95319-1016 M
straight plug, 360° RF sealed
TV 07 / CTV 07 / VG95319-1016 L
Jam nut receptacle for rear wall mounting
TV 01 / CTV 01
In-line receptacle
TV 02 / CTV 02
Flange receptacle for front wall mounting
Electrical data / contacts
Max. current per contact
125A
EMC/RFI Protection
Electrically conductive shell surfaces and backshells for connecting a shielding braid enable a shielding effect between the plug, socket, backshell and shielding braid of the cable against electromagnetic interference.
Contact selection
Crimp contact wire cross-section:
AWG 4 - 23
Contacts for PCB connection, straight or angled
Coax
Twinax / diff. Twinax
Quadrax
Octomax / Octonet
Fiber optic termini
ARINC801, Lumiere
USB, MPO, MTP, RJ45 connectors
(Modules must be ordered separately,
optionally with or without contacts)
Insert arrangements
Number of contacts: 1-30
Number of insert arrangements: 21+
Mechanical characteristics
Operating temperature range
-55°C to +175°C
Shock
Half sine: 300G 3ms per EIA364.27
Mating cycles
min. 500
Locking mechanism
Tri-Start thread lock
- Time-saving: Fast locking thanks to 360° rotation
- Safety: Acoustic and visual indicator confirms full locking, with over-twist protection
- Vibration-proof: Protects against unwanted unlocking due to vibration
Protection class
IP67 (0.1 bar/0.5 h)
Vibration
Sinus: 60g from -55°C to +175°C
Random per EIA364.28: 1G² per Hz at 175°C and 5G² per Hz at normal ambient temperature
Norm / Standard
Amphenol Air-LB is VG95319-1016 style K, L, and M approved and VG95212 (LZB) listed.
(The individual components are also approved as follows)
EN4165 / VG96513 modules
EN3155 / M39029 contacts
MIL-DTL-38999 Series III / VG95319-1006, -1007, -1008, -1016 Housing Size E / 005
The TV-SIM | CTV-SIM series from Amphenol-Air LB has the same technical design as VG95319-1016 and is its commercial equivalent. However, TV-SIM | CTV-SIM connectors offer an additional selection of versions and modules in addition to those described in the standard.
