  • compact rectangular connector
  • Push-pull locking mechanism
  • Low to medium power transmission

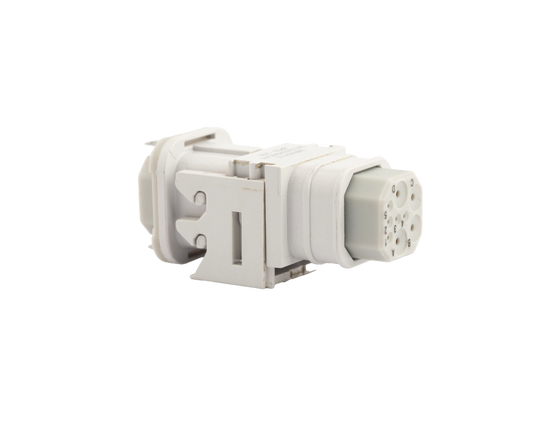

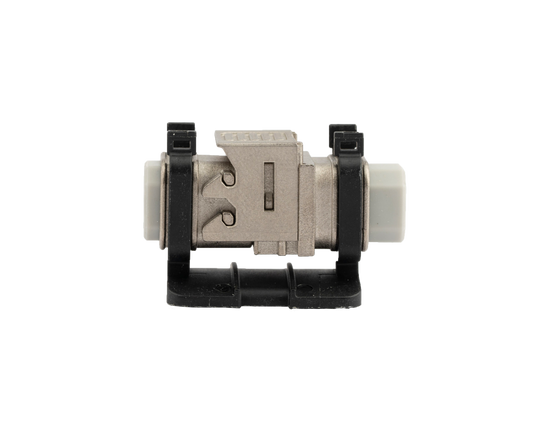

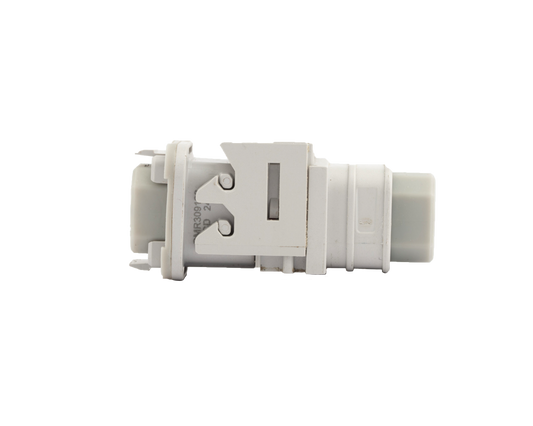

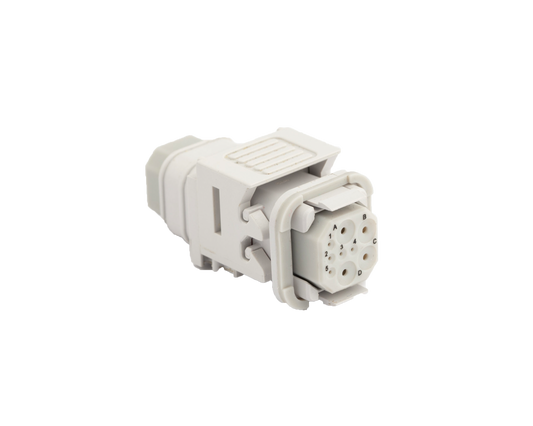

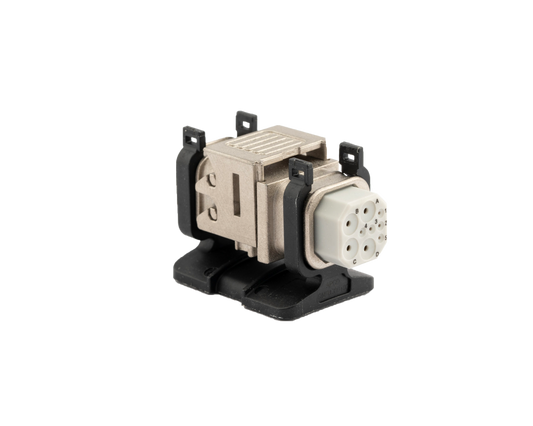

Velok is a small, light-weight, and easy to use rectangular connector designed for low and medium power applications primarily used in aerospace and harsh environments. Its compact design allows for limited space access.

Velok’s spring-loaded latch makes mating/unmating a snap by simply pushing to lock/unlock connection. The push lock provides convenient single-handed and tool-less mating. Positive lock indicator allows visual confirmation that the connector is properly mated.

Characteristics

  • The latest addition to the Luminus/Pegasus/Solaris family for aircraft interior lighting
  • Rectangular, compact design ideal for applications ideal where space is limited
  • Push-lock mechanism and quick-release system for at least 100 mating cycles.
  • Scoop-proof contact protection
  • With boot ridge fore for tying off protective sheathing w/o adding backshells or saddle clamps, and for fixing to the structure with additional support
  • Altitude immersion test: up to 5,000 FT (EIA-364-03)
  • IP69K
  • Operating temperature range: -55°C to +150°C
