VG96953-13 / CDEH

VG96953-13
CDEH

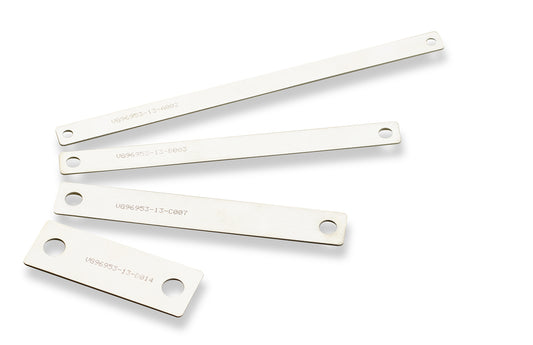

  • Grounding metal strip
  • Stainless steel (V4A)
  • Low resistance

The rectangular metal strip connectors made of stainless steel are used for grounding or power distribution in many areas, such as in military vehicles, and are also suitable for the maritime market thanks to their corrosion-resistant material.

  • Amphenol Air LB product with VG approval

Characteristics

  • Environmentally resistant for outdoor use: X2CrNiM017-12-2 (1.4404 stainless steel V4A) according to DIN EN 10088-3
  • low ohmic resistance, depending on size: 2.4 to 19.17mOhm
  • Four different shapes available:
  • A - 16 mm width, mounting hole diameter 6.6 mm
  • B - 18 mm width, mounting hole diameter 9.0 mm
  • C - 25 mm width, mounting hole diameter 11.0 or 13.5 mm
  • D - 36 mm width, mounting hole diameter 11.0 or 13.5 mm
